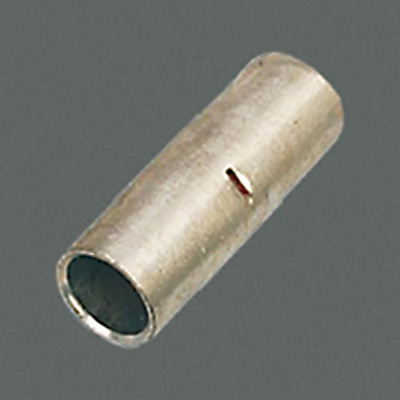

Conector a tope

Conector a tope sin aislar

Conector a tope sin aislar




Código mm² AWG Dimensiones
L d
GTY6 6 10 25 3.7
GTY10 10 8 30 4.5
GTY16 16 6 35 5.7
GTY25 4 40 7.2
GTY35 35 2 45 8.5
GTY50 50 1/0 50 9.8
GTY70 70 2/0 55 11.5
GTY95 95 3/0 60 13.7
GTY120 120 4/0 65 15.0
GTY150 150 250 MCM 70 16.7
GTY185 185 350 MCM 75 19.2
GTY240 240 450 MCM 80 21.0
GTY300 300 500 MCM 85 24.0
