Zapata tipo espada

Zapata tipo espada

Zapata tipo espada





Código Modelo Color mm²/AWG Medida UE
9200290000 LIS 1.5M3 V 1-0.75/18-20 1/8 100
9200300000 LIS 1.5M3.5 V 1-0.75/18-20 5/32 100
9200310000 LIS 1.5M4 V 1-0.75/18-20 5/32 100
9200320000 LIS 1.5M5 V 1-0.75/18-20 3/16 100
9200330000 LIS 1.5M6 V 1-0.75/18-20 1/4 100
9200350000 LIS 2.5M3 V 2.5-1.5/14-16 1/8 100
9200360000 LIS 2.5M3.5 V 2.5-1.5/14-16 5/32 100
9200370000 LIS 2.5M4 V 6 2.5-1.5/14-1 5/32 100
9200380000 LIS 2.5M5 V 2.5-1.5/14-16 3/16 100
9200390000 LIS 2.5M6 V 2.5-1.5/14-16 1/4 100
9200410000 LIS 6.0M4 V 6-4/10-12 5/32 100
9200420000 LIS 6.0M5 V 6-4/10-12 3/16 100
9200430000 LIS 6.0M6 V 6-4/10-12 1/4 100
9200440000 LIS 6.0M8 V 6-4/10-12 5/16 100

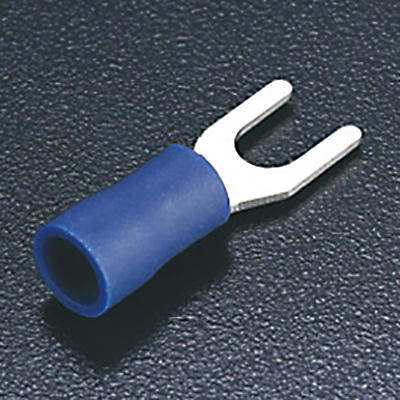

Tipo espada/horquilla

Zapata tipo
espada/horquilla




Código mm² AWG Dimensiones Color Empaque
d2 W L E d1
SV1-3.2 0.5-1.5 22-16 3.2 (1/8") 5.7 21.0 10 1.7 100 pz
SV1-3.7L 0.5-1.5 22-16 3.7 (9/64") 6.4 21.0 10 1.7 100 pz
SV1-4S 0.5-1.5 22-16 4.3 (5/32") 6.4 21.0 10 1.7 100 pz
SV1-5S 0.5-1.5 22-16 5.3 (3/16") 8.1 21.0 10 1.7 100 pz
SV1-6S 0.5-1.5 22-16 6.4 (1/4") 9.5 21.0 10 1.7 100 pz
SV1-6L 0.5-1.5 22-16 6.4 (1/4") 12.0 27.0 10 1.7 100 pz
SV2-3.2 1.5-2.5 16-14 3.2 (1/8") 5.7 21.0 10 2.3 100 pz
SV2-3.7S 1.5-2.5 16-14 3.7 (9/64") 5.7 21.0 10 2.3 100 pz
SV2-4S 1.5-2.5 16-14 4.3 (5/32") 6.4 21.0 10 2.3 100 pz
SV2-5S 1.5-2.5 16-14 5.3 (3/16") 7.9 21.0 10 2.3 100 pz
SV2-6S 1.5-2.5 16-14 6.4 (1/4") 9.3 27.0 10 2.3 100 pz
SV5-4L 4-6 12-10 4.3 (5/32") 8.3 25.5 13 3.4 100 pz
SV5-5 4-6 12-10 5.3 (3/16") 9.0 25.5 13 3.4 100 pz
SV5-6S 4-6 12-10 6.4 (1/4") 9.0 31.5 13 3.4 100 pz
SV5-8 4-6 12-10 8.4 (5/16") 14.0 30.5 13 3.4 100 pz
