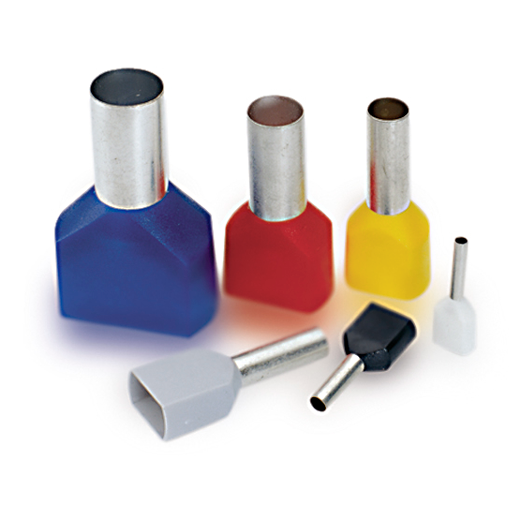

Punta terminal doble
| Código | Modelo | Color | mm²/AWG | UE |
|---|---|---|---|---|
| 9037200000 | H0.5/14 ZH OR |  |
0.5/20 | 500 |
| 9037410000 | H0.75/14D ZH GR |  |
6/10 | 100 |
| 9037440000 | H1.0/15D ZH R |  |
1/17 | 500 |
| 9037480000 | H1.5/20D ZH SW |  |
1.5/16 | 500 |
| 9037530000 | H4.0/22D ZH GR | |
4/12 | 100 |
| 9004730000 | H4/22D ZH GR SV | |
4/12 | 100 |
| 9037330000 | H6,0/29 ZH SW | |
6/10 | 100 |

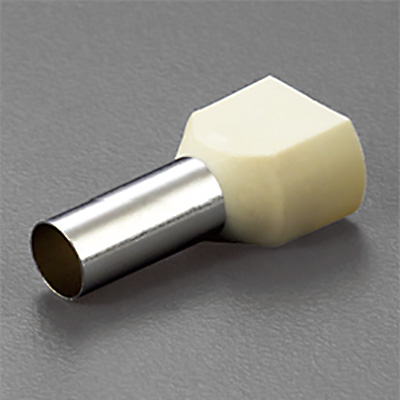

Puntas terminales
doble
| Código | mm² | AWG | Dimensiones | Color | Empaque | |||
|---|---|---|---|---|---|---|---|---|
| F | L | W | C | |||||
| TE0508 | 0.5 | 22 | 8.0 | 14.5 | 5.0 | 1.5 | |
100 pz |
| TE7508 | 0.75 | 20 | 8.0 | 14.7 | 5.1 | 1.8 |  |
100 pz |
| TE1008 | 1.0 | 18 | 8.0 | 15.1 | 5.5 | 2 |  |
100 pz |
| TE1512 | 1.5 | 16 | 12.0 | 19.5 | 6.6 | 2.3 | |
100 pz |
| TE2510 | 2.5 | 14 | 10.0 | 18.5 | 7.9 | 2.9 |  |
100 pz |
| TE4012 | 4.0 | 12 | 12.0 | 23.1 | 8.9 | 3.8 | |
100 pz |
| TE6014 | 6.0 | 10 | 14.0 | 26.1 | 14.5 | 4.9 | |
100 pz |
